The Ultimate Beginner's Guide to MC4 Solar Connectors

The Beginner's Guide to MC4 Solar Connectors: A South African Perspective



At Oliross Solar, we believe in empowering our customers with the knowledge to make informed decisions about their solar power systems. A crucial, yet often overlooked, component of any solar installation is the MC4 connector. While they may seem small, these connectors are the backbone of your system, ensuring a safe, efficient, and reliable connection between your solar panels and your inverter.

This guide will walk you through the essentials of MC4 connectors and highlight some critical considerations specific to the South African solar landscape.

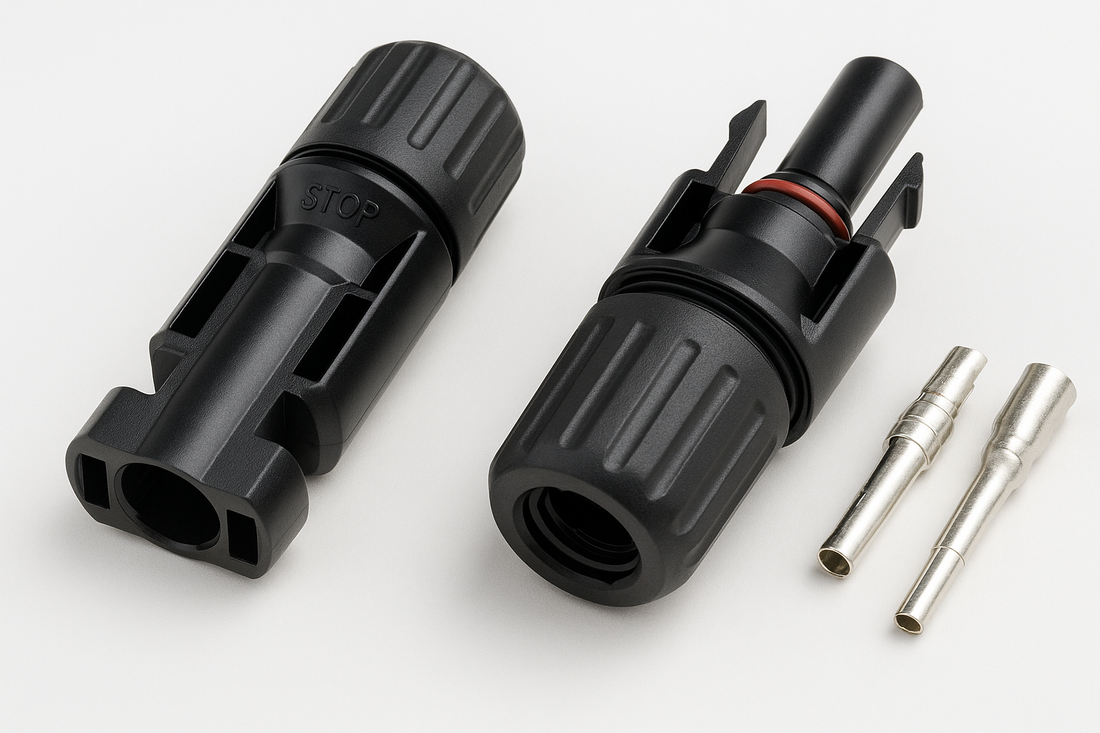

What Are MC4 Connectors?



MC4 stands for "Multi-Contact 4mm²," a standard for single-contact electrical connectors used to connect solar panels. Their primary function is to provide a secure, weatherproof connection, ensuring that the DC current flows efficiently and safely from your panels to the rest of the system.



Key Features to Look For



When selecting MC4 connectors, quality and compatibility are non-negotiable. Look for products that offer:

• Safety Certifications: Ensure your connectors are TUV, UL, or IEC certified. These certifications guarantee that the product has been tested to meet international safety and performance standards.

• Durability and Weatherproofing: Connectors for outdoor use must be built to withstand the elements. An ingress protection (IP) rating of at least IP67 is ideal, as it ensures they are both waterproof and dustproof.

• Voltage and Current Ratings: Always match the connector's ratings to your system's specifications. Using a connector with a lower rating than your system's voltage or current can lead to overheating and potential system failure.



A Simple Installation Overview



While we always recommend using a qualified professional for installation, understanding the process can help you appreciate the importance of a quality job.

The installation of MC4 connectors typically involves:

1. Preparation: Measure and cut your solar cable to the required length.

2. Stripping the Cable: Use a proper wire stripper to remove the correct length of insulation from the end of the cable.

3. Crimping the Contact: Crimp the male or female metal contact onto the stripped wire using a dedicated MC4 crimping tool. The crimp must be secure and tight to ensure good electrical contact.

4. Assembly: Insert the crimped contact into its respective male or female connector housing until it clicks into place. This "click" confirms a secure and locked connection.



Common Mistakes to Avoid



• Poor Crimping: An improperly crimped connection is the most common cause of MC4 connector failure. A loose crimp can create resistance, leading to power loss, overheating, and a potential fire hazard.

• Mixing Brands: Different brands of MC4 connectors, even those that look identical, may not be compatible. Mixing and matching can result in poor electrical contact and is a major safety risk. Always use connectors from the same manufacturer.

• Using the Wrong Tools: Avoid using pliers or other improper tools to crimp the connectors. A professional MC4 crimping tool is essential for a reliable and safe connection.



The South African Context: Regulations and Safety



For solar installers and homeowners in South Africa, there are additional, critical factors to consider. The local regulatory environment is designed to ensure safety, reliability, and compliance with the national grid.

1. South African National Standards (SANS): The SANS 10142-1-2 standard is the key regulatory document for low-voltage embedded generation installations. It outlines the specific requirements for solar PV systems, from the components used to the installation methods. Ensuring your system components, including MC4 connectors, comply with this standard is not just good practice—it's a legal requirement.

2. Certificate of Compliance (CoC): Every new solar installation in South Africa, whether grid-tied or off-grid, must have a valid Certificate of Compliance. This document is a legal declaration by a qualified electrician that the installation meets the required safety standards. Without a CoC, your system may not be insurable, and you could face legal consequences.

3. Qualified Installers are a Must: Unlike some DIY projects, solar installations are complex and require specialised knowledge. In South Africa, it is mandatory for solar systems to be installed by a qualified electrician, specifically an Installation Electrician (IE) or Master Installation Electrician (MIE), who can issue the CoC. Self-installation is not permitted and can be dangerous.

By understanding and adhering to these standards, you can ensure that your solar investment is safe, compliant, and performs optimally for years to come. At Oliross Solar, we pride ourselves on using only SANS-compliant components and employing certified professionals to guarantee the highest quality and safety for your solar energy journey.
