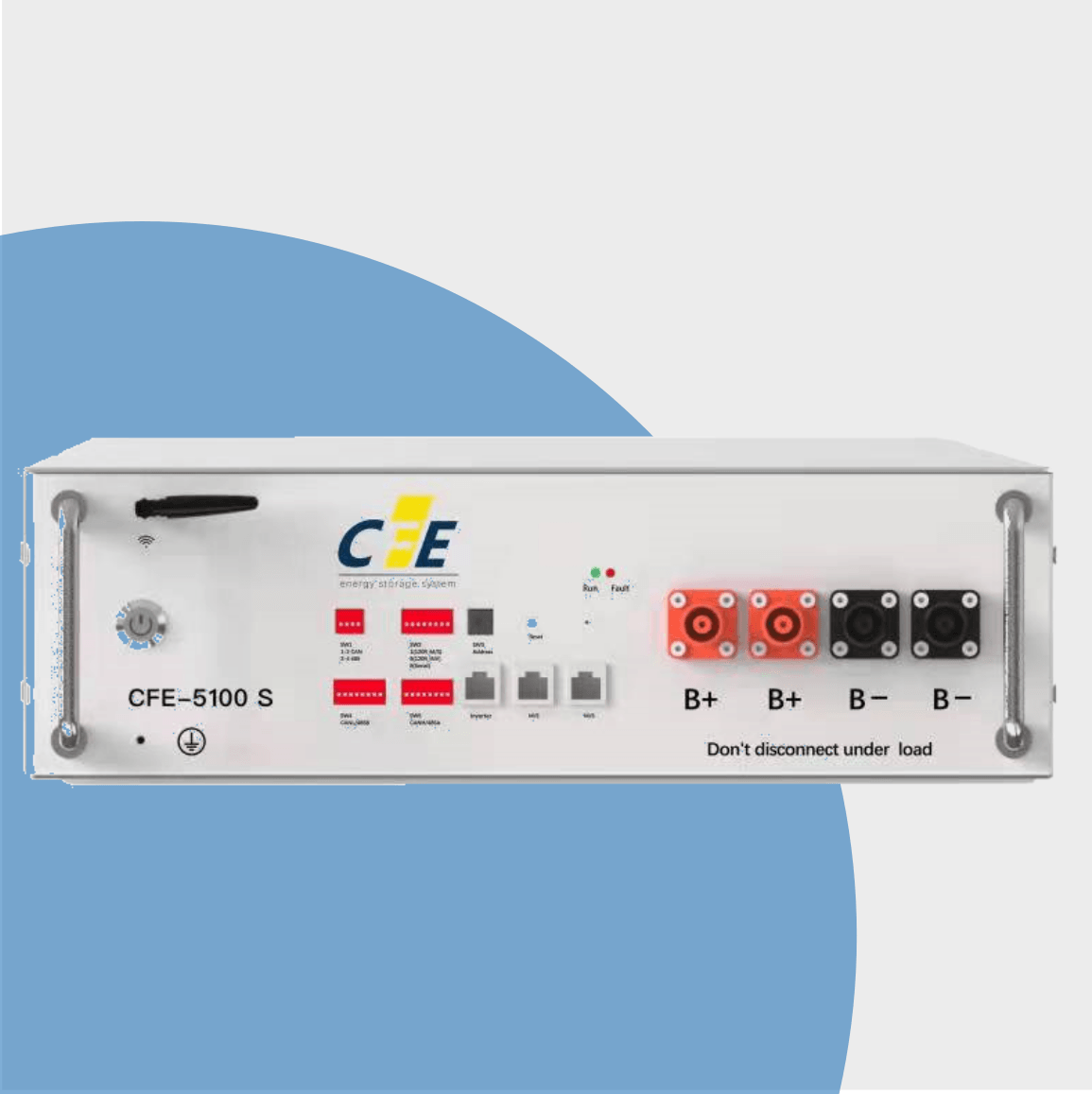

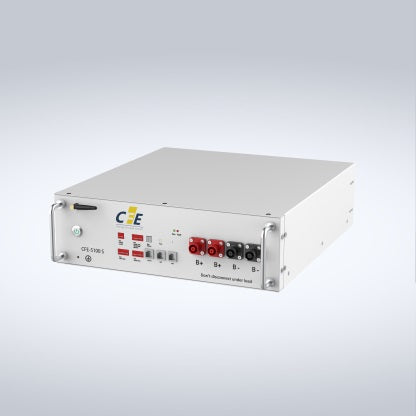

CFE 5.12kWh Lithium Ion Battery
Introduction:
If you're in the market for a reliable lithium-ion battery, the CFE 5.12kWh Lithium-ion Battery is an excellent choice. Manufactured by CFE-CF Energy in China under the model CFE-5100S, this high-quality 48V LiFePO4 lithium-ion battery is designed for both UPS and solar systems, harnessing the power of sunlight. With a capacity of 5.12kWh, it operates between 48VDC and 56VDC and ensures system security with an integrated BMS (Battery Management System) on each module. Plus, monitoring its performance is a breeze through the CFE APP and built-in WIFI connectivity..
Specifications:
- Battery Type: Lithium-Ion
- Battery Module: CFE-5100S
- Total Capacity: 5.1Kwh
- Nominal Charge / Discharge Power: 3.0Kw
- Operating Voltage: 48VDC to 56VDC
- Nominal Voltage: 51.2VDC
- Maximum Charging Voltage: 57.6VDC
- Nominal Current: 60A
- Recommended Depth of Discharge (DOD): 90%
- Installation Type: Cabinet or Wall Mount
- Maximum Number of Units in Parallel: 10 Units
- Series Connection: Not Supported
- WIFI: Integrated WIFI Module (Accessible via CFE APP)
- Color: White
Environment Limit:
- Cooling Type: Ambient Cooling
- Ingress Protection: IP20 (Suitable for Indoor Use)
- Operating Temperature Range: -10°C to 55°C
- Relative Humidity: 20% to 60% (Non-Condensing)
- Communication: CAN/RS485/WIFI (CFE APP)
- Safety Rating: IEC 62619, IEC 62040
Features:
- Energy Storage: Perfectly suited for compatibility with PV solar systems.
- Battery Management System (BMS): Monitors and safeguards the battery to prevent it from operating outside its design limitations.
- Monitoring: The built-in BMS with WIFI module enables easy monitoring of battery performance via mobile phones and computers.
- Firmware Updates: The BMS firmware can be effortlessly updated to the latest version.
- Expandability: You can increase the battery capacity by adding more units.
Safety Rules for Installation and Operation:
-
Network Cable: If needed, follow the provided diagram for making the network cable. Ensure that the network cable between the battery and the inverter complies with the inverter's definition. Use a LAN cable tester to check for any faults in the cable.
-
Mounting: The battery can be either wall-mounted or rack-mounted. If installing more than four batteries, it is recommended to use a cabinet for stability.
Advantages and General Applications:
- Parallel Connection: Allows for parallel installation of signal modules.
- Integrated WIFI Modem: Each unit includes an integrated WIFI modem for easy troubleshooting and maintenance.
- Direct Smartphone Connection: Enables direct communication with smartphones and the battery's BMS, particularly useful for sites without internet access.
- Remote Firmware Updates: Simplifies the process of updating firmware remotely, reducing the need for on-site service.
- Versatile Installation: Provides options for wall mounting and ground installation.
- Precision Monitoring: Offers accurate voltage and current sampling precision, resulting in more precise State of Charge (SOC) calculations that never jump.
The CFE 5.12kWh Lithium Ion Battery is a versatile and reliable energy storage solution suitable for various applications, including solar power systems and UPS setups. Its advanced features and safety precautions make it a dependable choice for energy storage needs. CFE-5100S
Documents
CFE 5,12kWh Lithium Ion Battery - CFE-5100S - Datasheet
CFE 5,12kWh Lithium Ion Battery - CFE-5100S - User manual
CFE 5,12kWh Lithium Ion Battery - CFE-5100S - Compatibility inverter list
