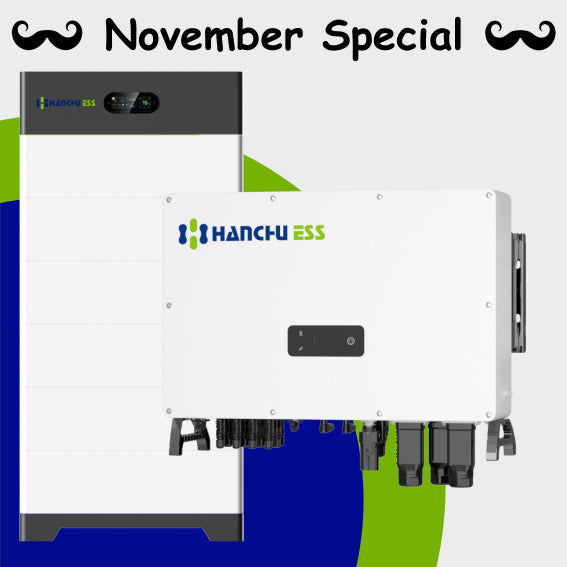

Hanchu 25-50kW Hybrid Inverter 3 Phase (CESS-HY-25-50K) Product Description
Product Overview: The Hanchu 25-50kW Hybrid Inverter is an advanced three-phase solution designed for commercial and industrial applications. This powerful hybrid inverter series combines high efficiency, reliability, and intelligent energy management, making it ideal for a wide range of energy solutions from kilowatt to megawatt scale.
Key Features:
- High Efficiency: Boasts a maximum efficiency of 98.8% with a wide battery voltage range of 135-750V and a charge/discharge current of up to 100A.
- Reliable Performance: Features IP65 protection, ensuring long-term operation in various environments. The advanced heat dissipation design guarantees optimal performance and longevity.
- Powerful Output: Supports up to 100% unbalanced load and 110% AC output overloading, with the capacity for parallel operation to scale system sizes from kilowatts to megawatts.
- User-Friendly Design: Easy installation and maintenance with a horizontal design and quick plug terminals. Data can be easily accessed via OLED display and mobile app, with simple WiFi configuration.
- Advanced Protection: Equipped with comprehensive protection features, including DC reverse polarity, battery input reverse connection, insulation resistance, surge, over-temperature, residual current, islanding, AC over-voltage, overload, and short-circuit protections.
Technical Specifications:
- Model Variants: Available in 25kW, 30kW, 36kW, 40kW, and 50kW models.
- PV Input: Maximum input power ranges from 37.5kW to 75kW with a PV input current of 30A and a start-up voltage of 135V.
- Battery Compatibility: Supports lithium batteries with BMS, operating within a voltage range of 135-750V.
- Grid and Back-Up Side: Provides seamless switching within 20ms for UPS-level performance, with a rated output voltage of 220/380V, 230/400V, or 240/415V at 50/60Hz.
- Dimensions and Weight: Compact design with dimensions of 800×620×300 mm and a weight of 72 kg.
- Environmental Adaptability: Operates in a temperature range of -30°C to 60°C with a noise level of less than 50dB, suitable for altitudes up to 3000 meters with derating above this level.
Certifications: Complies with international standards including IEC/EN 62109, IEC/EN 61000, EN50549-1, TOR Generator Type A, and VDE-AR-N-4105.
Introducing the HVES C&I Series 9.4 kWh High Voltage Battery: Powering Your Home, Empowering Your Life
The CESS-HV-9.4K is a cutting-edge energy storage solution designed for commercial and industrial applications, offering unparalleled performance, safety, and smart management capabilities.
Key Features:
- Scalable Design: Expandable from 28.2kWh to 112.8kWh (3 to 12 modules)
- High Performance: 100A rapid charge and discharge capability
- Maximum Efficiency: 95% Depth of Discharge for optimal energy utilization
- Advanced Safety: Blade LFP battery with aerosol fire-protection system
- Smart Management: 24/7 real-time monitoring, remote diagnostics, and upgrades
Technical Specifications:
- Nominal Voltage: 153.6V to 614.4V (depending on configuration)
- Module Weight: 75Kg
- Dimensions: 780432720mm to 7804322160mm (based on module count)
- Temperature Range: Charging 0°C to 50°C, Discharging -20°C to 60°C
- IP65 Rated: Superior protection against dust and water jets
- Cycle Life: >6000 cycles at 25°C
Leading Technology:
- Best-in-class Blade LFP battery with CTP (Cell to Pack) technology
- Built-in heat dissipation system for long-term stability and reliability
- Advanced smart BMS (Battery Management System) and EMS (Energy Management System)
- Touchable displays for enhanced user interaction
Smart Features:
- Remote energy management and optimization
- Cloud-based service for battery preservation and diagnostics
- Predictive maintenance to extend battery life
The HVES C&I Series offers a perfect blend of performance, safety, and intelligence. Its modular design allows for flexible installation and easy scaling, while the comprehensive IoT platform provides unparalleled control over your energy usage.
Experience the future of energy storage with the HVES C&I Series – where innovation meets reliability to power your business efficiently and sustainably.
Documents
Documents
Hanchu 50kW Hybrid Inverter 3 Phase (CESS-HY-50K) - Datasheet
Hanchu 9.4kW HV Lithium Battery - DOD95% (HOME-ESS-HV9.4K) - Datasheet
