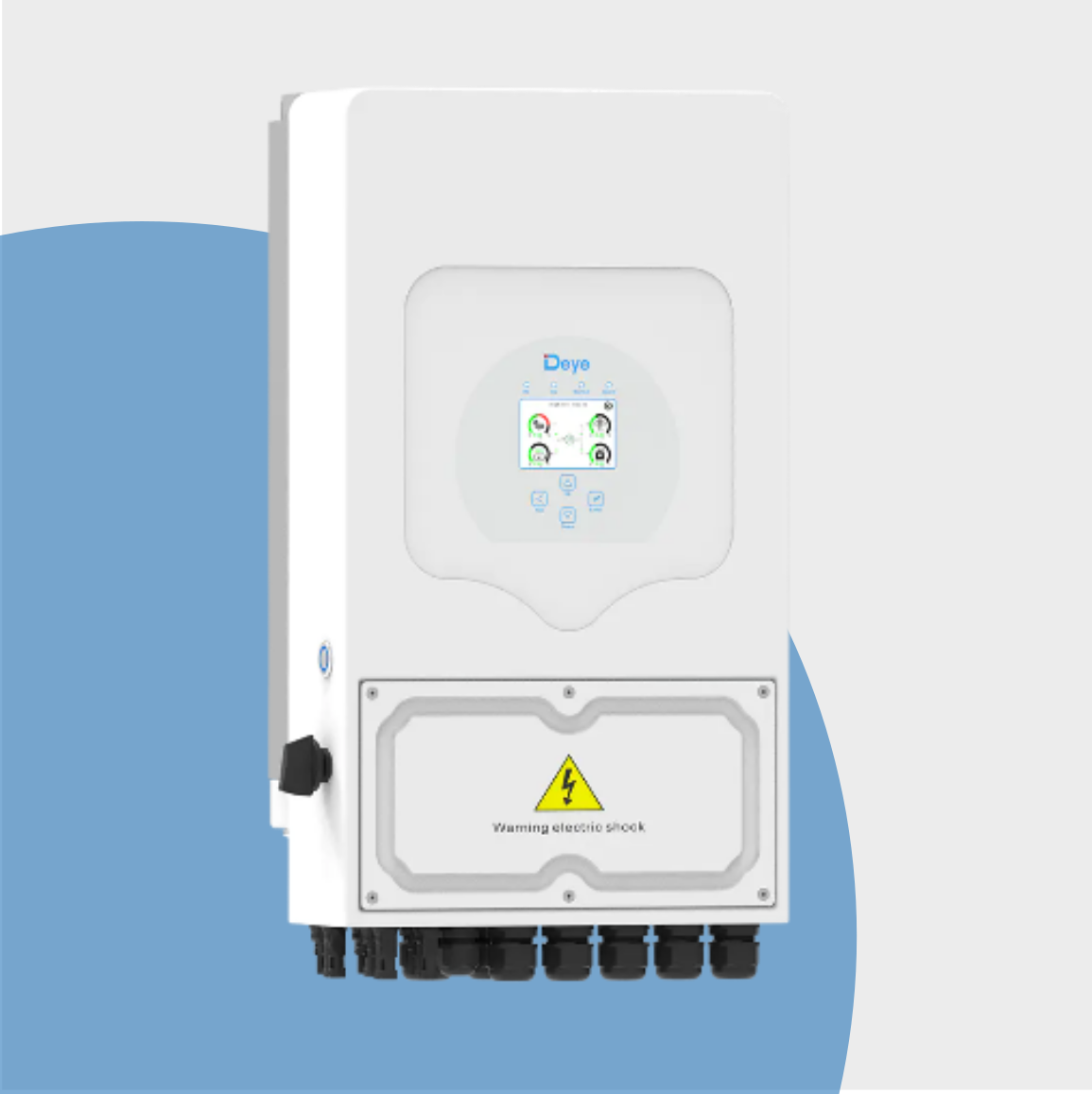

Deye Single Phase 10kW Hybrid Inverter (SUN-10K-SG02LP1-EU-AM3)
Elevate your home's energy independence with the Deye SUN-10K-SG02LP1-EU-AM3, a powerful 10kW single-phase hybrid inverter perfect for residential solar systems. This eco-friendly unit optimizes solar energy capture, battery storage, and grid integration to lower your carbon footprint and electricity costs. With robust IP65 protection and advanced features, it ensures durable, reliable performance in diverse conditions.
Key Benefits:
- Energy Efficiency: Boasts 97.6% max efficiency and >99% MPPT efficiency for superior power conversion.
- Durability: IP65 rating, wide operating temperature (-40°C to +60°C), and integrated protections for long-term reliability.
- Eco-Friendliness: Supports lead-acid or lithium-ion batteries, diesel generator energy storage, and reduces grid dependency.
- Flexibility: Parallel up to 16 units, AC coupling for retrofits, and 6 time periods for charging/discharging.
- Smart Features: Colorful touch LCD, optional monitoring via GPRS/WIFI/Bluetooth/4G/LAN.
Specifications:
- Battery Type: Lead-acid or Lithium-ion
- Battery Voltage Range: 40-60V
- Max. Charging/Discharging Current: 220A
- Number of Battery Inputs: 1
- Max. PV Input Power: 20000W
- Max. PV Input Voltage: 500V
- MPPT Voltage Range: 150-425V
- Number of MPPT Trackers/Strings: 3/2+2+2
- Max. Operating PV Input Current: 26+26+26A
- Rated AC Output Power: 10000W
- Max. AC Output Apparent Power: 11000VA
- Nominal AC Voltage: 220/230V
- Max. Continuous AC Passthrough: 50A
- Efficiency: 97.6% Max, 96.5% Euro
- Protection: DC reverse polarity, AC overcurrent/voltage/short circuit, anti-islanding, etc.
- Communication: RS485/RS232/CAN
- Weight: 35.6kg
- Dimensions: 420×670×233 mm
- Ingress Protection: IP65
Harness sustainable power now. Add to cart and go solar!
Documents
Deye 10kW Single Phase Hybrid Inverter (SUN-10K-SG02LP1-EU-AM3) - Datasheet
