Deye 10kW Hybrid Inverter - Triple MPPT, 220A Fast Charging, 16 Units Parallel Ready for Maximum Expansion

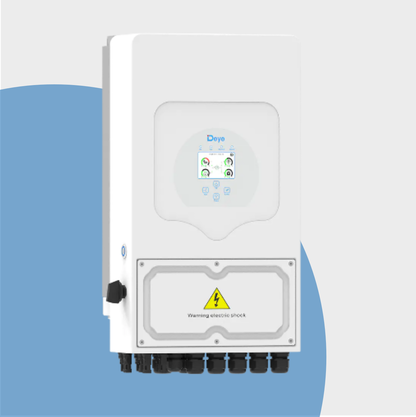

Deye 10kW Single Phase Hybrid Inverter
Smart Power Management for Growing South African Homes SCALE YOUR ENERGY INDEPENDENCE WITH DEYE'S EXPANDABLE 10kW SOLUTION
When your energy needs are growing but you want to start smart, the Deye 10kW Hybrid Inverter delivers the perfect balance of power, expandability, and intelligent energy management for Durbanville families planning for the future.
Why the Deye 10kW is the Smart Expansion Choice TRIPLE MPPT FLEXIBILITY 3 Independent MPPT Trackers - Harvest from multiple roof angles 32A+32A+32A PV Input - Supports up to 20kW solar arrays 150-425V MPPT Range - Optimized for varied panel configurations 99% MPPT Efficiency - Maximum energy capture in all conditions
HIGH-SPEED BATTERY MANAGEMENT 220A Max Charge/Discharge - Fast battery cycling capability 40-60V Battery Range - Compatible with all major battery types Self-Adaptation to BMS - Seamless smart battery integration External Temperature Sensor - Battery protection in SA heat
EXPANSION-READY ARCHITECTURE Up to 16 Units Parallel - Grow from 10kW to 160kW systems Generator Integration - Store energy from diesel generators AC Coupling Capable - Retrofit existing solar systems easily Smart Load Management - Intelligent appliance control
CRITICAL SPECIFICATIONS FOR SCALABLE HOMES Rated Power: 10,000W continuous output Peak Power: 20,000W for 10 seconds (heavy motor starting) PV Input: 20,000W maximum solar capacity Battery Current: 220A charge/discharge - rapid cycling MPPT Channels: 3 independent trackers with 6 string inputs Efficiency: 97.6% maximum, 96.5% Euro efficiency Protection: IP65 rated - outdoor installation ready Warranty: 5-year standard, 10-year extended options
ADVANCED FEATURES FOR GROWING HOMES INTELLIGENT ENERGY SCHEDULING 6 Time Period Programming - Custom charge/discharge schedules Time-of-Use Optimization - Automatic peak/off-peak management Load Priority Configuration - Essential circuits stay powered Grid Support Functions - Feed excess power back when needed
PROFESSIONAL-GRADE PROTECTION PV Arc Fault Detection - Optional fire prevention system Lightning Protection - Type II protection on DC and AC sides Residual Current Monitoring - Enhanced electrical safety Insulation Resistance Detection - Early fault warning system
SMART MONITORING & CONTROL Color Touch LCD Display - Intuitive interface with real-time data Remote App Management - Control from anywhere via smartphone Multiple Communication Ports - RS485, RS232, CAN, WiFi, Bluetooth Firmware Updates - Regular performance enhancements
PERFECT FOR EXPANDABLE INSTALLATIONS FAMILY HOME GROWTH SOLUTION Ideal for families planning to: Add more solar panels over time Expand battery storage capacity Upgrade to larger home or add pool Install electric vehicle charging
SMALL BUSINESS FLEXIBILITY Perfect for businesses needing: Scalable power as operations grow Multiple appliance additions over time Future workshop or equipment expansion Staff increases requiring more power
MODULAR EXPANSION PATH Start with basic system and add: Additional parallel inverters later More battery storage modules Generator backup integration Advanced energy management systems
INSTALLATION EXCELLENCE CERTIFIED SOUTH AFRICAN INSTALLATION Our accredited technicians ensure: Correct parallel system configuration Optimal string design for future expansion Proper battery bank setup Complete system commissioning and testing
LOCAL SUPPORT ADVANTAGE South African technical support Local spare parts availability Quick warranty processing Regular firmware updates for SA conditions
COST-EFFECTIVE GROWTH PATH PHASED INVESTMENT APPROACH Start with 10kW now, expand later Add capacity as budget allows No need to oversize initially Protect against future energy price increases
LONG-TERM ENERGY SAVINGS 70-90% electricity bill reduction 10+ year system lifespan Low maintenance requirements Increased property value
COMPATIBILITY GUARANTEE WORKS WITH ALL MAJOR COMPONENTS Solar Panels: All brands and technologies Batteries: Lithium-ion and lead-acid options Grid: Single-phase 220/230V systems Generators: Automatic switch-over capable
FAQ BLOCK How many solar panels can the 10kW Deye handle? The inverter supports up to 20kW of solar panels across 3 MPPT trackers, typically 40-50 modern panels depending on wattage.
What battery capacity works best? We recommend 10-20kWh of lithium storage for complete load shedding protection. The 220A charging fills most batteries in 2-4 hours.
Can I really expand to 16 units later? Yes, the Deye 10kW supports parallel connection of up to 16 units, allowing expansion from 10kW to 160kW as your needs grow.
Is it compatible with existing solar systems? Absolutely. The Deye can AC-couple to existing grid-tied systems, allowing you to add battery backup without replacing existing equipment.
How does it handle Stage 6+ load shedding? With adequate battery storage, the system provides uninterrupted power through consecutive outages and can recharge quickly between stages.
What monitoring options are available? Full remote monitoring via smartphone app with real-time data, historical reporting, and remote control capabilities.
WHY BUY FROM OLIROSS SOLAR DURBANVILLE LOCAL EXPERTISE Western Cape specialists understanding local grid conditions and expansion needs.
COMPLETE SOLUTIONS We provide scalable system design, quality components, professional installation, and ongoing support.
PROVEN TRACK RECORD Hundreds of successful Deye installations throughout the Western Cape.
COMPREHENSIVE WARRANTY 5-year inverter warranty with local claim support and rapid response.
Documents
Deye 10-12kW Single Phase Hybrid Inverter (SUN-10K-SG02LP1-EU-AM3-P) - Datasheet
Deye 10-12kW Single Phase Hybrid Inverter (SUN-10K-SG02LP1-EU-AM3-P) - User Manual
