ENER-G-AFRICA P5 545W Solar Panel – Monocrystalline PERC

ENER-G-AFRICA P5 545W monocrystalline PERC solar panel, manufactured in South Africa. Features 21.1% maximum module efficiency, a low -0.35%/°C power temperature coefficient, and a 25-year power performance warranty.

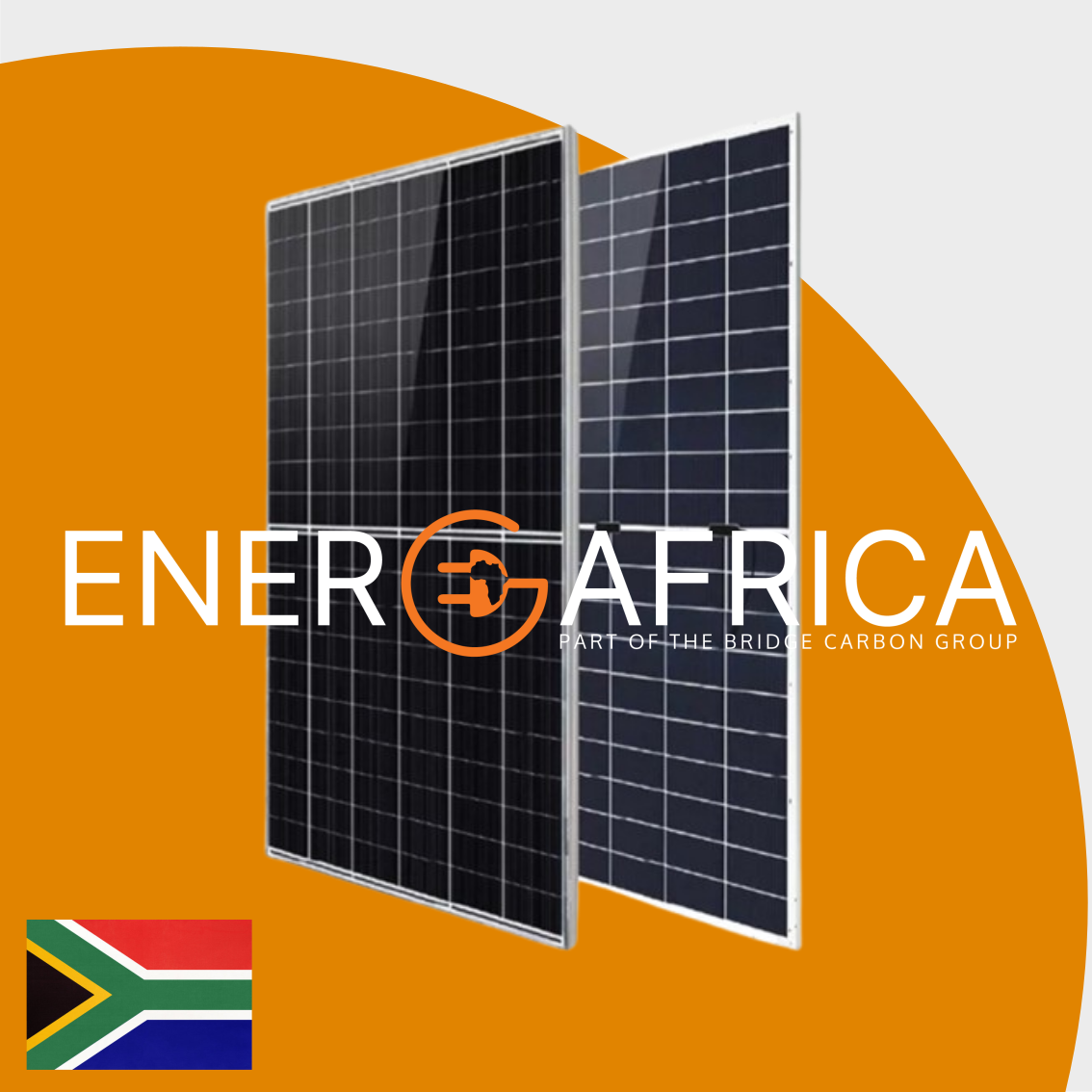

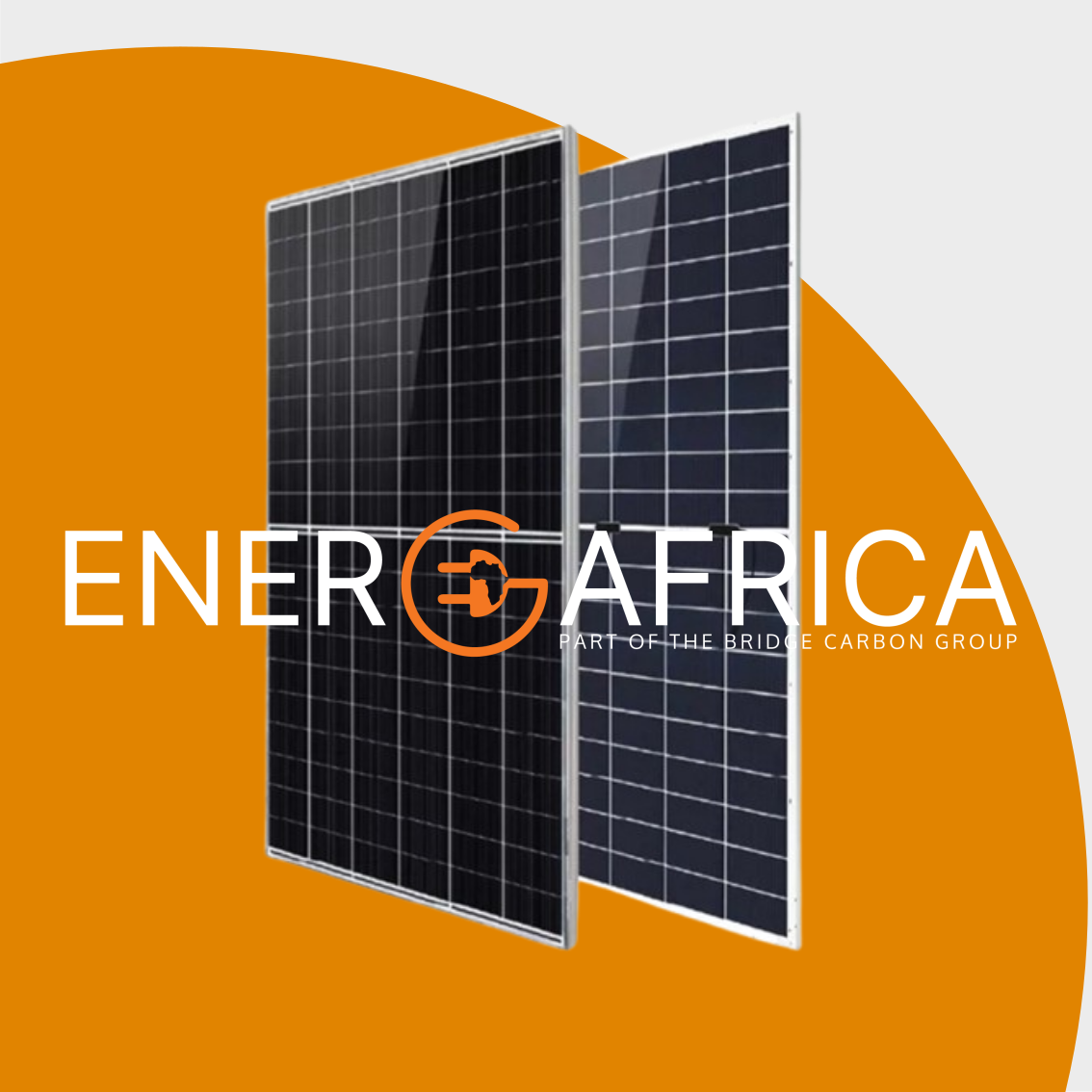

ENER-G-AFRICA P5 545W Solar Panel

The ENER-G-AFRICA P5 545W solar panel delivers high-power solar generation for residential, commercial and industrial installations. Manufactured in South Africa, this monocrystalline PERC solar module is designed for demanding African operating conditions, combining high output, reliable performance and locally supported product warranties.

With a rated output of 545W, the P5 helps maximise solar generation from available roof or ground-mounted installation space. Its 144 half-cut cell design, 10 busbars and robust aluminium frame make it suitable for a wide range of solar PV projects.

High-Power 545W Solar Performance

The ENER-G-AFRICA P5 delivers up to 545 watts of rated power, helping installers achieve substantial solar capacity with fewer modules than lower-wattage alternatives.

Key performance benefits include:

• 545W rated output under Standard Test Conditions (STC)

• Up to 21.1% module efficiency

• Monocrystalline P-type PERC cell technology

• 144 half-cut cells with 10 busbars

• 1500V DC maximum system voltage

• ±3% power tolerance

These features make the P5 a practical choice for larger residential systems, commercial rooftops and industrial solar installations.

Designed for African Climate Conditions

Solar panels operating in hot environments can experience reduced output as cell temperatures rise. The ENER-G-AFRICA P5 features a power temperature coefficient of -0.35%/°C, helping limit power losses caused by elevated cell temperatures.

Its construction and operating specifications are designed for demanding environments, with a rated operating temperature range of -40°C to +85°C.

Built in South Africa

The ENER-G-AFRICA P5 is manufactured in South Africa using premium components sourced from international suppliers. Local manufacturing supports regional supply, technical assistance and locally supported warranty processes.

For South African solar installers and project developers, choosing a locally manufactured panel offers an alternative to imported modules while supporting the development of the domestic renewable-energy industry.

Durable Construction

The P5 uses 3.2mm textured glass and an anodised aluminium frame. Its specified maximum static load is 3600Pa on the front side and 1600Pa on the rear side.

Additional construction features include:

• IP68-rated junction box

• Three bypass diodes

• 400mm output cables

• 4mm² cable cross-section

• 25A maximum series fuse rating

• 1500V DC maximum system voltage

These specifications support integration into appropriately designed solar PV installations. Final system design must account for mounting conditions, electrical ratings and applicable installation requirements.

Long-Term Warranty Protection

The ENER-G-AFRICA P5 datasheet specifies:

• 12-year product warranty covering materials and workmanship

• 25-year power performance warranty

• Maximum first-year power degradation of 2%

• Maximum subsequent annual power degradation of 0.56%

These warranty terms provide long-term performance assurance, subject to the manufacturer's applicable warranty conditions.

ENER-G-AFRICA P5 545W Technical Specifications

Electrical values are specified at Standard Test Conditions (STC): irradiance of 1000W/m², AM1.5 spectrum and cell temperature of 25°C. The manufacturer's datasheet notes that specifications may change without prior notice.

Ideal Applications

The ENER-G-AFRICA P5 545W solar panel is suitable for:

• Residential rooftop solar installations

• Commercial and industrial solar PV systems

• Warehouses and factory rooftops

• Ground-mounted solar arrays

• Agricultural and farming applications

• Large-scale solar projects

Why Choose the ENER-G-AFRICA P5 545W?

The ENER-G-AFRICA P5 combines 545W solar output, efficient PERC cell technology, durable construction and local South African manufacturing. Its 1500V system rating and high-power module design make it suitable for professionally engineered solar installations across a variety of applications.

For customers looking for a locally manufactured solar panel backed by a 12-year product warranty and 25-year power performance warranty, the P5 is a compelling option for residential, commercial and industrial solar projects.

Frequently Asked Questions

How many watts is the ENER-G-AFRICA P5 solar panel?

The P5 model described here has a rated output of 545W under Standard Test Conditions.

Where is the ENER-G-AFRICA P5 manufactured?

The datasheet identifies South Africa as the country of manufacture.

What is the efficiency of the P5 545W panel?

The specified module efficiency range is 20.3–21.1%.

What are the panel's voltage and current ratings?

At maximum power, the 545W version has a voltage of 41.76V and current of 13.13A. Its open-circuit voltage is 48.79V and short-circuit current is 14.05A.

What is the temperature coefficient?

The maximum-power temperature coefficient is -0.35%/°C.

What are the dimensions and weight?

The panel measures 2279 × 1134 × 35mm and weighs 23kg.

What warranties are specified?

The datasheet specifies a 12-year materials and workmanship warranty and a 25-year power performance warranty, subject to the manufacturer's terms.

Can the P5 be used with a hybrid inverter?

Yes, provided the PV string voltage, current, maximum system voltage and other electrical parameters comply with the inverter manufacturer's limits. String design must account for the increase in open-circuit voltage at low temperatures.

Is the P5 suitable for commercial solar installations?

Yes. The manufacturer identifies residential and commercial/industrial applications as intended markets.

Documents

ENER-G-AFRICA P5 545W - Datasheet
