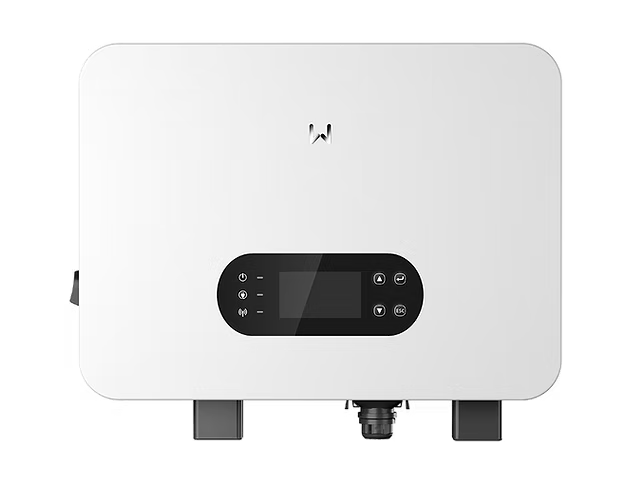

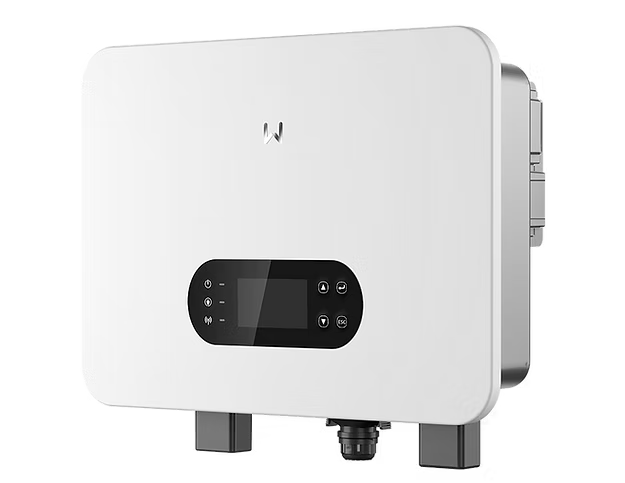

GoodWe ES Uniq Series 6kW Hybrid Inverter (GW6000-ES-C10)
Empower your home with the GoodWe GW6000-ES-C10, a robust 6kW single-phase hybrid inverter tailored for residential solar setups. This eco-conscious solution optimizes energy use, blending solar, battery, and grid power to minimize environmental impact and utility costs. With IP66 durability and advanced safety, it delivers reliable performance in any weather.
Key Benefits:
- Energy Efficiency: Up to 97.6% max efficiency, 99.9% MPPT efficiency, and 200% PV oversizing for maximum yield.
- Durability: IP66 protection, wide operating temperature (-35°C to +60°C), and integrated protections like AFCI and surge safeguards.
- Eco-Friendliness: Enables clean energy storage with compatible batteries, reducing reliance on fossil fuels.
- Flexibility: Supports on/off-grid, parallel up to 6 units, and brands like GoodWe Lynx.
- Smart Features: Touch-screen LCD, app monitoring, <4ms backup switch, and smart load control.
Specifications:
- Battery Type: Li-Ion / Lead-acid
- Nominal Battery Voltage: 48V
- Battery Voltage Range: 40-60V
- Max. Charging/Discharging Current: 140A
- Max. Charging Power: 6.0kW
- Max. Discharging Power: 6.6kW
- PV Max. Input Power: 12.0kW
- Max. Input Voltage: 600V
- MPPT Operating Voltage Range: 60-550V
- Number of MPPT Trackers: 1
- Max. Input Current per MPPT: 20A
- Nominal AC Output Power: 6.0kW
- Max. AC Active Power: 6.6kW
- Nominal Output Voltage: 220/230/240V
- Max. AC Current Output: 30A
- Back-up Max. Output Power without Grid: 6.6kVA (12.0kVA, 10s)
- Efficiency: 97.6% Max, 96.2% European
- Protection: Integrated PV monitoring, reverse polarity, anti-islanding, etc.
- Communication: RS485, WiFi, LAN, Bluetooth
- Weight: 15.5kg
- Dimensions: 560 × 415 × 204 mm
- Ingress Protection: IP66
Go green and save. Buy now!
