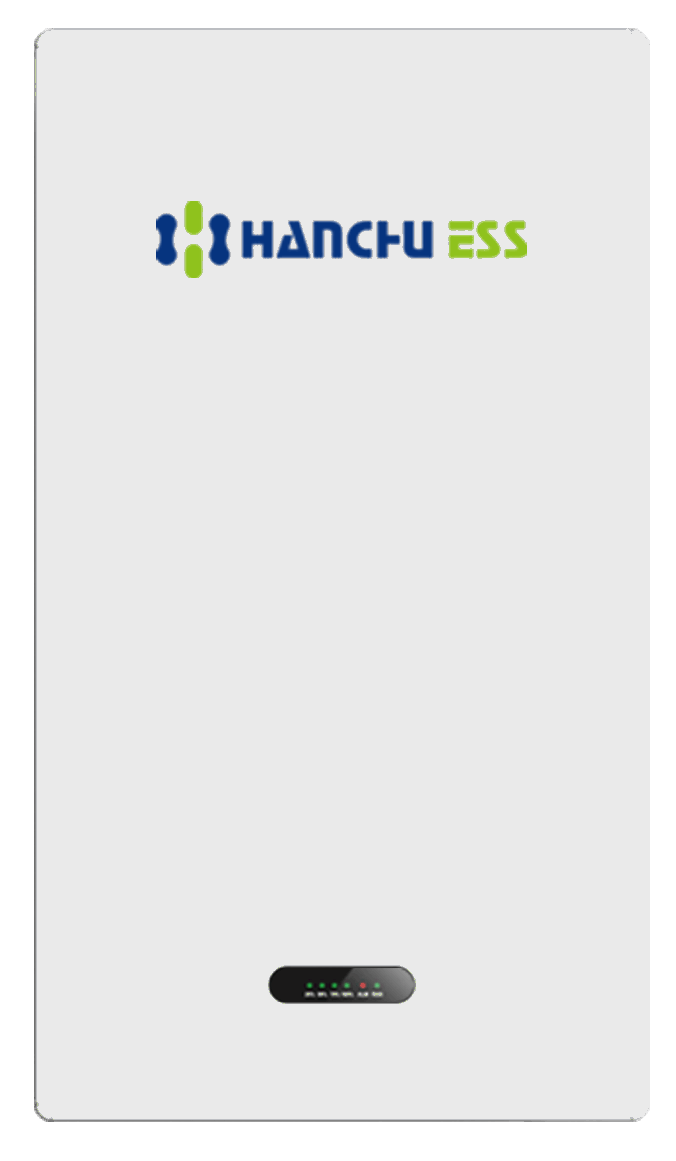

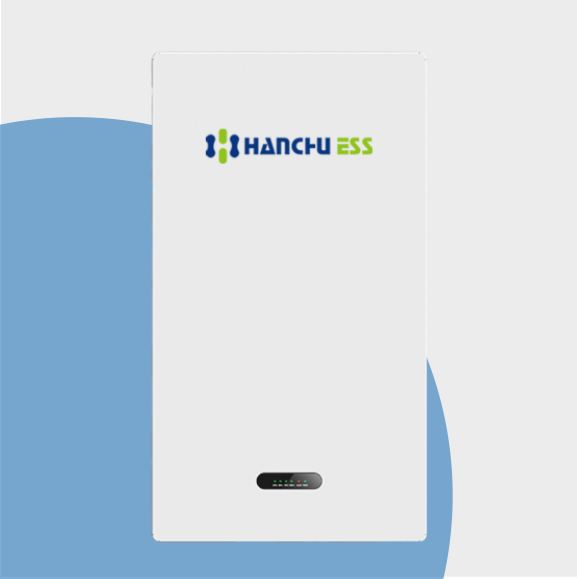

Hanchu 5.12kW Lithium Battery - DOD95% (HOME-ESS-LV5.12K)

Introducing the HOME-ESS-LV-5.12K: Advanced, Safe, and Powerful Home Energy Solution

The HOME-ESS-LV-5.12K is a state-of-the-art energy storage system designed for modern homes demanding high performance and smart management. This advanced unit combines top-tier safety features with intelligent capabilities to deliver reliable power and optimize your energy usage.

Key Features:

• Scalable Design: Expandable from 5.12kWh to 40.96kWh to meet diverse energy needs
• Ultra-Thin Profile: Sleek 338x138.5x600mm dimensions for easy handling and installation
• High Performance: 100A rapid charge and discharge capability per unit
• Maximum Efficiency: 95% Depth of Discharge for optimal energy utilization
• Smart Management: 24/7 real-time monitoring, remote diagnosis, and upgrading
• Flexible Communication: Supports CAN, RS485, WiFi, and Bluetooth
• Superior Safety: Top-quality LFP (LiFePO4) batteries with fire protection for every pack

Technical Specifications:

• Nominal Voltage: 51.2V (Operating range: 43.2-57.6V)
• Weight: 46.5Kg
• Temperature Range: Charging 0°C to 50°C, Discharging -20°C to 55°C
• IP54 Rated: Protected against dust and water splashes
• Certifications: IEC 62619, CE, UN38.3 for safe transportation

Smart Features:

• Intelligent Auto-Addressing: Simplifies installation and configuration
• Cloud-Based Management: Optimizes energy allocation and preserves battery life
• User-Friendly App: Fast configuration and monitoring via smartphone application
• Predictive Maintenance: Anticipates and resolves potential issues proactively

Installation Advantages:

• Easy Handling: Ultra-thin body design for convenient installation
• Simplified Parallel Connection: Up to 250A for main circuit during parallel, eliminating the need for a combiner box

The HOME-ESS-LV-5.12K offers a perfect blend of power, intelligence, and safety. Its natural convection cooling ensures quiet operation, while the smart BMS and online-EMS provide comprehensive protection and optimization.

Experience the future of home energy management with the HOME-ESS-LV-5.12K – where cutting-edge technology meets reliability to power your life efficiently and sustainably.

Documents

Hanchu 5.12kW Lithium Battery - DOD95% (HOME-ESS-LV5.12K) - Datasheet
