Introducing the HOME-ESS-LV-5.3K-S: High-Performance, Safe, and Stylish Home Energy Solution
The HOME-ESS-LV-5.3K-S is a state-of-the-art energy storage system designed for modern homes demanding both performance and aesthetics. This advanced unit combines top-tier efficiency with smart design to deliver reliable power in a sleek package.
Key Features:
- Scalable Capacity: Expandable from 5.3kWh to 42.4kWh to meet diverse energy needs
- Compact Design: Efficient 438x437x129mm dimensions for easy integration
- High Performance: 100A rapid charge and discharge capability
- Maximum Efficiency: 95% Depth of Discharge for optimal energy utilization
- Superior Safety: Top-quality LFP (LiFePO4) batteries with intelligent BMS protection

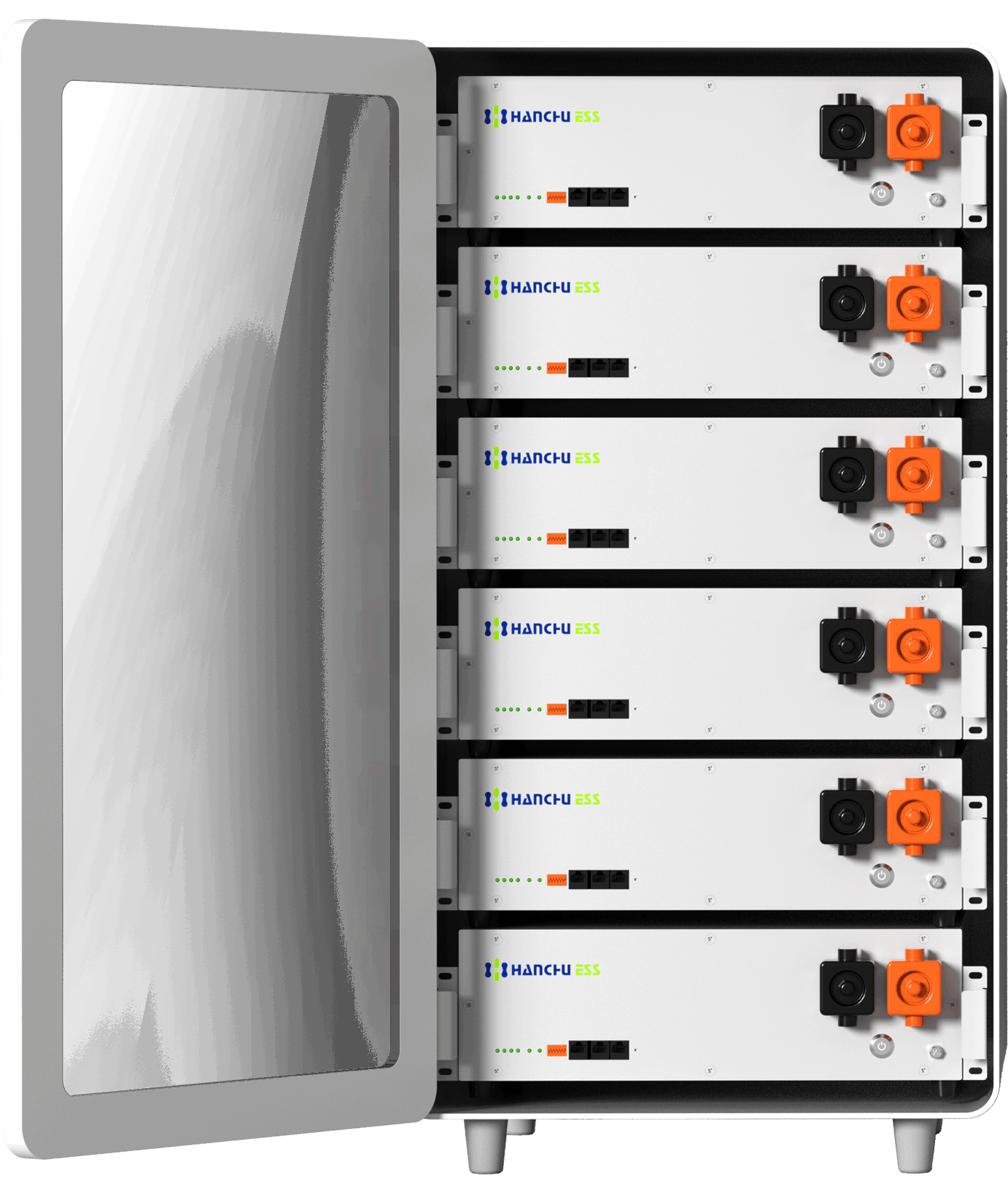

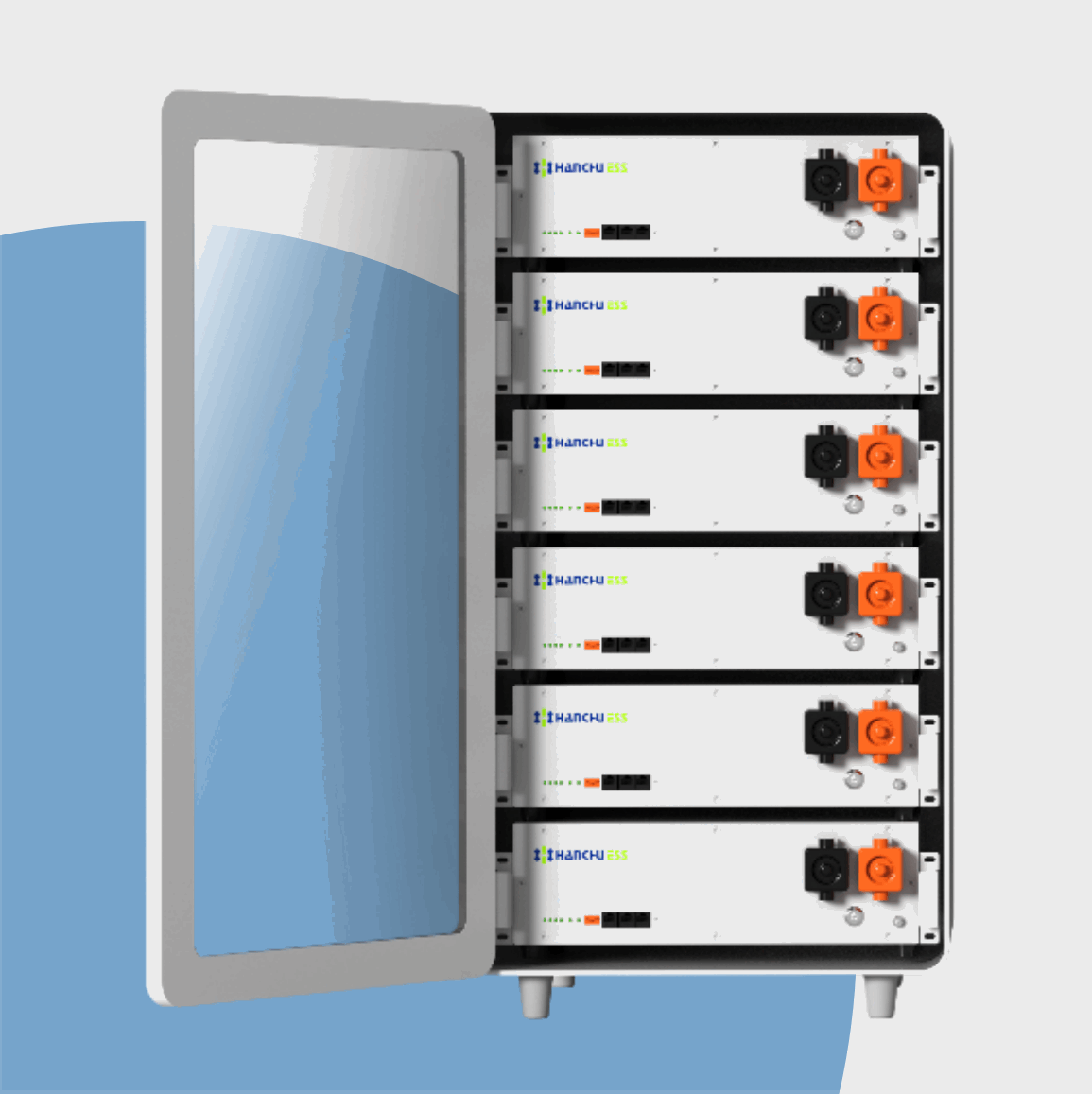

- Flexible Installation: Up to 8 units can be stacked in parallel
Technical Specifications:
- Nominal Voltage: 51.2V (Operating range: 43.2-57.6V)
- Weight: 45.2Kg
- Temperature Range: Charging 0°C to 50°C, Discharging -20°C to 60°C
- IP54 Rated: Protected against dust and water splashes
- Certifications: IEC 62619, CE, UN38.3 for safe transportation
Installation Advantages:
- Modular Design: Compact units for easy handling and installation
- Plug and Play: Fewer spare parts needed for quick setup and scaling
- Cabinet-Friendly: Fits neatly into cabinets for a cleaner, more streamlined look
Safety and Reliability:
- Top-quality LFP battery technology for long-term stability
- Intelligent Battery Management System (BMS) for comprehensive protection
- Natural convection cooling for quiet and reliable operation
The HOME-ESS-LV-5.3K-S offers an ideal blend of performance, safety, and design. Its modular structure allows for easy installation and future expansion, while the ability to fit into cabinets provides a clean, integrated look in your home.
Experience the future of home energy management with the HOME-ESS-LV-5.3K-S – where high performance meets sleek design to power your life efficiently and elegantly.
Documents
Hanchu 5.3kW Lithium Battery - DOD95% (HOME-ESS-LV5.3K-S) - Datasheet
