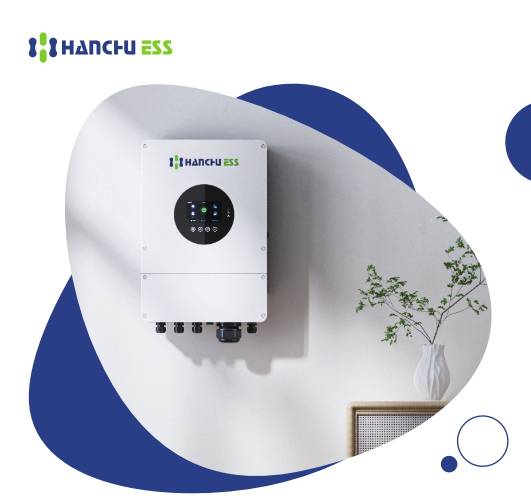

Hanchu 6kW Hybrid Inverter (HESS-HY-S-6K-S) Product Description
Product Overview: The Hanchu 6kW Hybrid Inverter (HESS-HY-S-6K-S) is a versatile and high-performance inverter designed for single-phase applications. It seamlessly integrates solar energy, battery storage, and grid power to provide a reliable and efficient energy solution for residential and small commercial setups.
Key Features:
- High Efficiency: Advanced Maximum Power Point Tracking (MPPT) with up to 99.9% efficiency, ensuring maximum solar energy utilization.
- Robust Performance: Capable of delivering a rated output power of 6kW with a peak power of 12kVA, suitable for various power needs including motor loads up to 4HP.
- User-Friendly Design: Features an industrial design with a modern aesthetic, easy installation, and simple operation for user convenience.
- Reliable and Safe: IP65-rated enclosure for protection against dust and water, ensuring reliable operation in diverse environmental conditions. Includes comprehensive safety features from hardware to software.
- Powerful Charging: Supports up to 100A charging current and is compatible with multiple battery types, including lead-acid, lithium-ion, and user-defined options.
- Intelligent Operation: Equipped with exclusive lithium-ion battery BMS dual activation and a time-slot function to optimize energy costs by utilizing peak and off-peak rates.
Technical Specifications:
- Rated Output Power: 6000W
- Maximum Peak Power: 12000VA
- Rated Voltage: 230V AC, single phase
- Frequency: 50/60Hz
- Battery Voltage Range: 40-60V DC (minimum start-up voltage 44V)
- Maximum PV Input Current: 16A + 16A
- Maximum Utility Charging Current: 60A
- Maximum Efficiency: 97.5%
- MPPT Operating Voltage Range: 120-450V DC
- Enclosure Protection Rating: IP65
- Dimensions: 556 x 345 x 182 mm
- Weight: 20 kg
- Operating Temperature Range: -25°C to 60°C (with derating above 45°C)
- Noise Level: <60dB
- Communication Interfaces: RS485, CAN, USB, and Dry contact, with optional WiFi/GPRS module
Certifications:
- Safety and Compliance: Certified under IEC 62109, EN 61000, RoHS, and EN50549-1 standards.
The Hanchu 6kW Hybrid Inverter (HESS-HY-S-6K-S) is an ideal solution for those seeking a reliable and efficient inverter that integrates seamlessly with solar and battery systems, providing uninterrupted power and optimizing energy costs.
