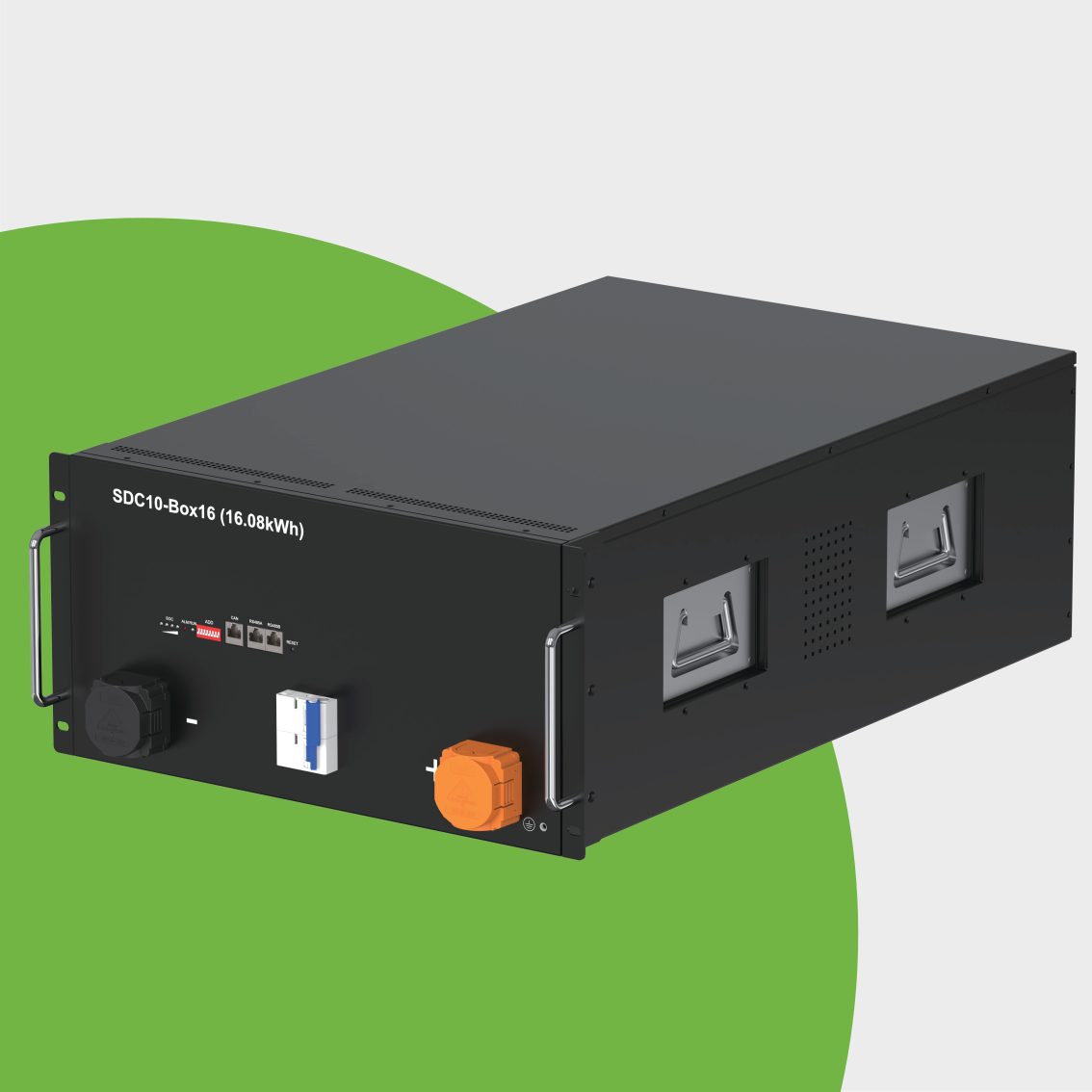

Shoto 16 kWh Battery (SDC10‑Box16) – Your Power‑House for a Cleaner South Africa
Why the Shoto 16 kWh Battery is the Smartest Investment for Your Solar System
| ✅ | Feature | What It Means for You |
|---|---|---|
| 16.08 kWh usable energy | Stores enough power for an average household ≈ 2 days of night‑time use. | |
| 51.2 V LFP (Li‑Fe‑PO₄) chemistry | Non‑flammable, no memory effect, 100 % depth‑of‑discharge capability. | |
| 7.2 kW continuous / 8 kW peak output | Runs high‑demand appliances (air‑conditioning, washing machines) without hiccups. | |
| Ultra‑long cycle life – 15 years | Up to 3 000+ charge‑discharge cycles, outlasting conventional lead‑acid batteries. | |
| Modular & scalable | Parallel up to 321.6 kWh – expand as your home or business grows. | |
| High safety standards | Built‑in fire‑protection module, over‑current & temperature monitoring. | |
| Smart communication | CAN or RS‑485 interface – ready for any major inverter brand (SMA, Fronius, Victron, etc.). | |
| Optional Bluetooth & IoT | Remote monitoring via your phone or home‑energy app. | |
| Compact rack‑mount (IP20) | 484 × 233 × 700 mm, 113 kg – fits neatly in garages, basements or utility rooms. | |
| Natural cooling, 95 % round‑trip efficiency | Keeps energy loss to a minimum while staying silent and maintenance‑free. |
Turn Your Roof‑Top PV into a Reliable Power Hub
- Grid‑connected or off‑grid – Seamlessly store excess solar generation and use it when the sun sets or during load‑shedding.
- Zero‑maintenance design – No water cooling, no venting, no regular servicing.
- Future‑proof – Ready for smart‑home integration, demand‑response programs and renewable‑energy incentives across South Africa.
Simple Installation, Certified Performance
- Rack‑mounted (IP20) for quick wall or floor mounting.
- Operating temperature: ‑5 °C → +50 °C (charge) / ‑15 °C → +50 °C (discharge) – perfect for the Western Cape climate.
- Pre‑tested and certified (UN 38.3, CE) for safety and transport.
What You Get in the Box
- 1 × Shoto SDC10‑Box16 battery module (16.08 kWh)
- Mounting hardware & installation guide
- CAN/RS‑485 communication cable (optional Bluetooth kit)
- Optional fire‑protection and Bluetooth add‑ons (order separately)
Frequently Asked Questions (FAQ)
Q: How long will the Shoto 16 kWh battery last?
A: The LFP cells are rated for a minimum of 15 years (≈ 3 000 + full cycles) while maintaining > 95 % capacity.
Q: Can I connect more than one battery?
A: Yes. Batteries can be paralleled to expand storage up to 321.6 kWh. Our system controller will balance the cells automatically.
Q: Is the battery compatible with my existing inverter?
A: Absolutely. The unit supports CAN or RS‑485 communication and works with all major inverter brands (SMA, Fronius, Victron, GoodWe, etc.).
Q: Do I need a special cooling system?
A: No. The Shoto battery uses natural air cooling and operates silently with a 95 % round‑trip efficiency.
Q: What safety features are built‑in?
A: Over‑temperature, over‑current, and short‑circuit protection, plus an optional fire‑protection module for added peace of mind.
Q: How much space does it occupy?
A: Dimensions are 484 mm × 233 mm × 700 mm, weighing 113 kg – ideal for standard garage or utility room racks.
Q: Is there a warranty?
A: Shoto offers a 10‑year limited warranty covering performance and manufacturing defects.
Q: Can I monitor the battery remotely?
A: With the optional Bluetooth or CAN‑compatible gateway you can view State‑of‑Charge, voltage, temperature, and health via any solar‑monitoring app.
Q: Do I need a licensed electrician for installation?
A: Installation must be performed by a qualified electrician or a certified OLIROSS Solar installer to meet local SANS 101 standards.
Q: How does the battery handle extreme temperatures?
A: It operates safely from ‑5 °C to +50 °C (charging) and ‑15 °C to +50 °C (discharging). Performance drops only 10‑15 % below 5 °C, still delivering reliable power.
Ready to Power Your Home with Shoto?
💡 Click “Add to Cart” now and enjoy free nationwide shipping, professional installation support, and a 10‑year warranty.
📞 Need help sizing your system? Call us at +27 21 555 1234 or chat with our solar experts live on the site.
OLIROSS Solar – Clean Energy, Smart Savings, Nationwide Service.
Documents
Shoto 16kWh Battery (SDC10-Box16) - Datasheet
