SRNE All IN ONE 3,5KW Inverter and 5KW Battery

SRNE all in one - user manual

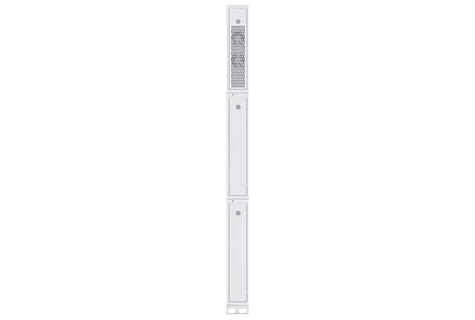

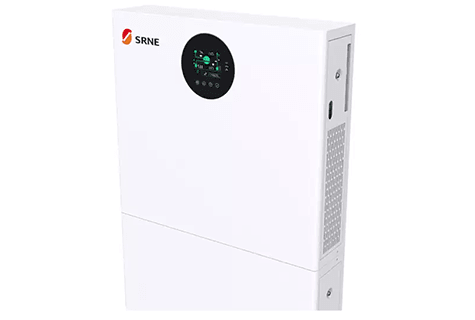

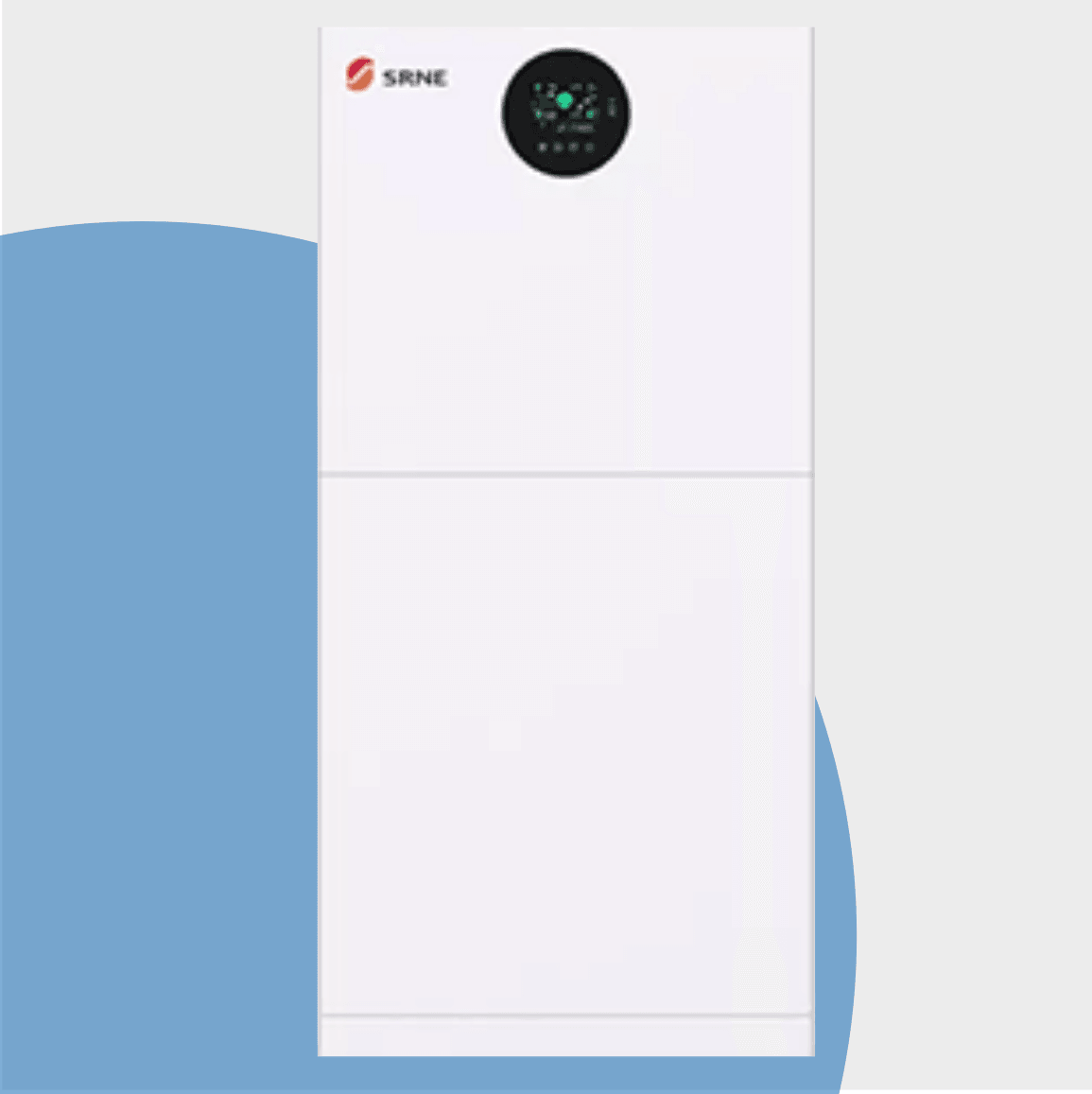

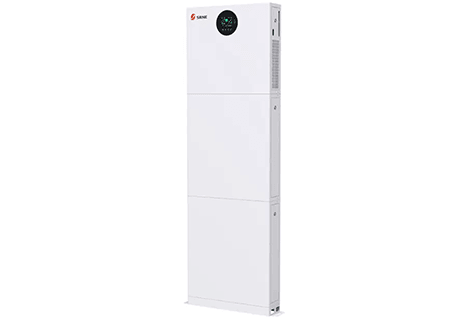

Product Name: SRNE All IN ONE 3.5KW Inverter and 5KW Battery

Battery Specs:

• Model: SR-EOV24-5.0A-E1.
• Number of Batteries: 1
• Battery Energy: 5.12 kilowatt-hours (KWH)
• Battery Capacity: 200 ampere-hours (AH)
• Weight: 100 kilograms
• Dimensions: 1190mm length x 600mm depth x 184mm height
• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Battery Voltage: 25.6 volts
• Voltage Range: 22.4VDC – 28.8VDC
• Maximum Charging Current: 150 amperes (A)
• Maximum Discharging Current: 150A
• Depth of Discharge (DOD): 80%
• Designed Lifespan: Up to 5000 cycles

Inverter Specs:

• Model: SR-EOV24-3.5S-C1

• Solar Charging:

  • Solar Charge Type: Maximum Power Point Tracking (MPPT)
  • Maximum Solar Input Power: 4000 watts (W)
  • Solar Charging Current Range: 0A-80A
  • Solar Voltage Range: 120VDC-500VDC
  • MPPT Voltage Range: 120VDC-450VDC

• AC Charging:

  • Maximum AC Charge Power: 2240W
  • AC Charging Current Range: 0A-80A
  • Rated Input Voltage: 220VAC-230VAC
  • Input Voltage Range: 90VAC-280VAC

• AC Output:

  • Rated AC Output Power: 3500W
  • Maximum Output Current: 30A
  • Frequency: 50Hz
  • Overload Current: 35A

• Battery Inverter Output:

  • Rated Output Power: 3500W
  • Maximum Peak Power: 6000VA
  • Power Factor: 1
  • Rated Output Voltage: 230VAC
  • Frequency: 50Hz
  • Auto Switch Period: Less than 15 milliseconds

Environmental Conditions:

• Communication: RS485 / CAN / WIFI
• Charging Temperature Range: 0°C to 45°C
• Discharging Temperature Range: -10°C to 45°C
• Operation Humidity: 5% to 85%
• Cooling Method: Forced-Air Cooling (60dB)
• Ingress Protection: IP20
• Operation Environment: Indoor
• Installation Orientation: Vertical
• Safety Certifications: UN38.3, MSDS, EN55032, EN55024, EN61000-3-2, EN61000-3-3

Basic Safety Guidelines for Installation and Operation:

1. Ensure the inverter and battery are installed in a well-ventilated, indoor location.

2. Keep the inverter and battery away from extreme temperatures, with a recommended operating temperature range of 0°C to 45°C for charging and -10°C to 45°C for discharging.

3. Maintain proper humidity levels between 5% and 85% in the installation environment.

4. Make sure to use the provided communication interfaces (RS485, CAN, WIFI) for monitoring and control.

5. Keep the inverter and battery away from water and ensure they are protected from dust and foreign objects.

6. Follow the recommended installation method, positioning the equipment vertically.

7. Adhere to safety certifications and guidelines, including UN38.3, MSDS, and relevant EN standards, for safe and compliant operation.

General Applications:

• Residential solar power systems.
• Backup power supply during electrical outages.
• Supporting off-grid or remote locations with reliable power.
• Commercial or industrial power storage solutions.
• Integrating renewable energy sources into the grid
