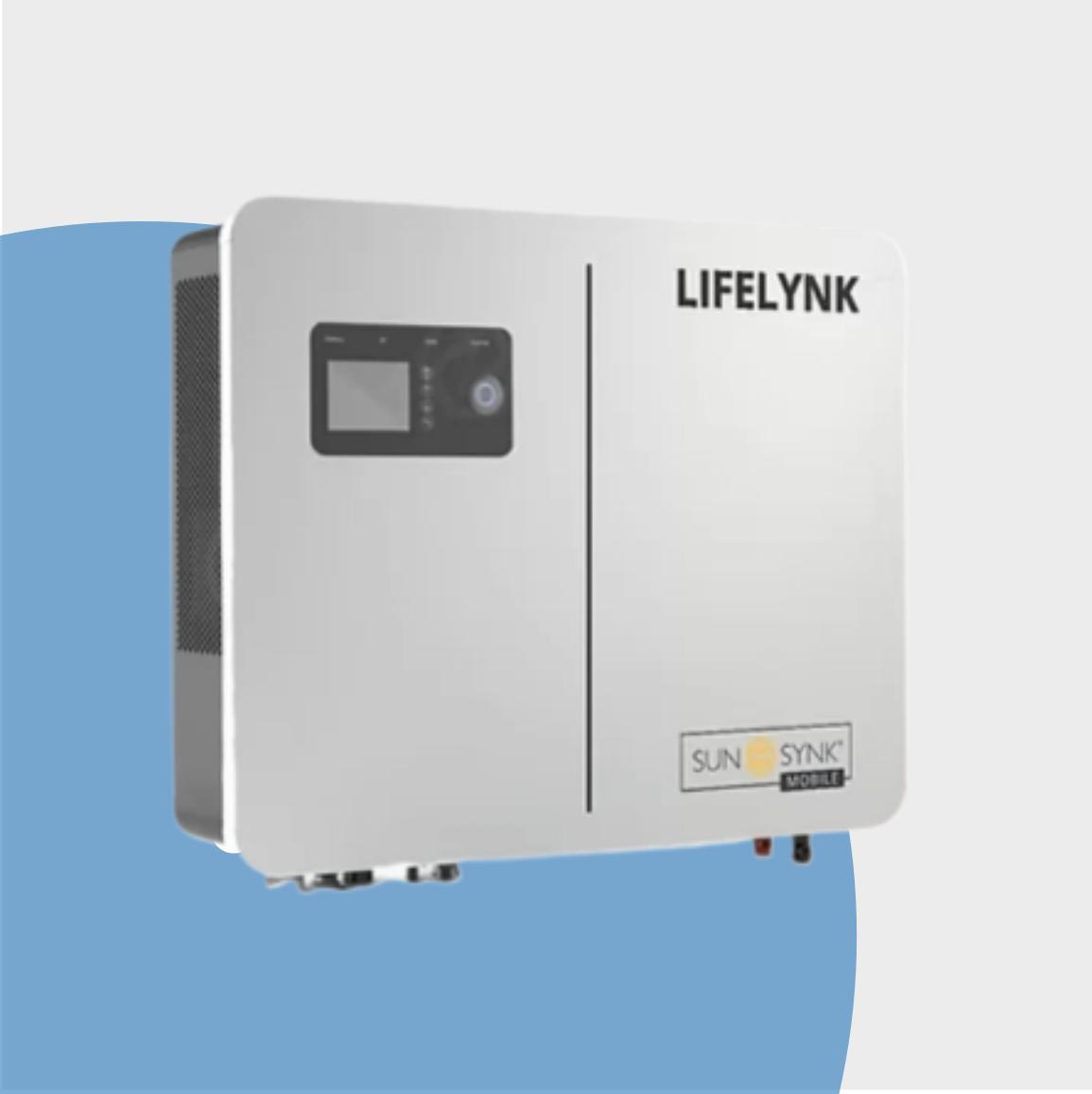

Sunsynk 8kW Lynks Hybrid Inverter (Model: SOL-103647)
The Sunsynk 8kW Lynks Hybrid Inverter is a next-generation energy management system built for power, flexibility, and smart control. Perfect for larger homes or businesses, this inverter combines solar input, battery storage, and grid usage into one seamless, intelligent system—allowing you to optimize your energy use, reduce costs, and maintain power during outages.
Key Features:
-
8kW Output Power: Delivers reliable power for high-consumption households or commercial applications.
-
Hybrid Functionality: Integrates solar, battery, and grid power with smooth transitions and smart prioritization.
-
Dual MPPT Inputs: Enhances solar efficiency by tracking two PV input sources independently.
-
Advanced Battery Support: Compatible with multiple battery chemistries including LiFePO₄ and lead-acid options.
-
Remote Monitoring: Manage and track system performance through a mobile app or web platform in real-time.
-
Built-in Safety: Features include overload, short circuit, reverse polarity, and over-temperature protection.
Specifications:
-
Inverter Type: Single-phase hybrid inverter (grid-tied with battery backup)
-
Rated AC Output: 8kW
-
Max DC Input Power: 10.4kW
-
Max PV Input Voltage: 500V
-
MPPT Voltage Range: 120V – 450V
-
Battery Voltage Range: 40V – 60V
-
Max Charge/Discharge Current: 125A / 135A
-
AC Output Voltage: 230V nominal
-
Efficiency: Up to 97.6%
-
Dimensions: 514 x 420 x 140 mm
-
Weight: 15.5 kg
-
Protection Rating: IP41 (indoor installation recommended)
Included Accessories:
-
Wall-mounting bracket
-
CT coil
-
MC4 connectors
-
Battery and AC connectors
-
Wi-Fi dongle for app-based monitoring
Why Choose the Sunsynk 8kW Lynks?
The Sunsynk 8kW Lynks Hybrid Inverter is the perfect fit for users who need more power, smarter energy control, and a future-proof solution. It balances your energy sources automatically, saves on electricity bills, and provides critical backup power when needed. With scalable battery support and intuitive management features, it's built for those who want energy independence with maximum reliability.
