Sunsynk Klik (SSKLIKACC01)

Sunsynk Klik Battery Communication Adapter (SSKLIKACC01) – Connect Two Different Batteries to One Hybrid Inverter

Unlock maximum flexibility for your solar battery storage system with the Sunsynk Klik. This compact, robust adapter solves one of the biggest frustrations in solar setups: mixing batteries from different brands or models with incompatible BMS protocols. It intelligently translates, aggregates, and sends a unified CAN signal to your Sunsynk (or compatible) hybrid inverter, allowing you to use two independent batteries simultaneously.

Perfect for South African homes and businesses expanding their energy storage, upgrading batteries, or mixing cost-effective brands like Pylon Tech, Victron, GoodWe, Growatt, Sofar, and more.

Key Features

• Supports two independent batteries with different BMS protocols on a single inverter
• Built-in LCD display + buttons for quick, visual protocol selection (no laptop required)

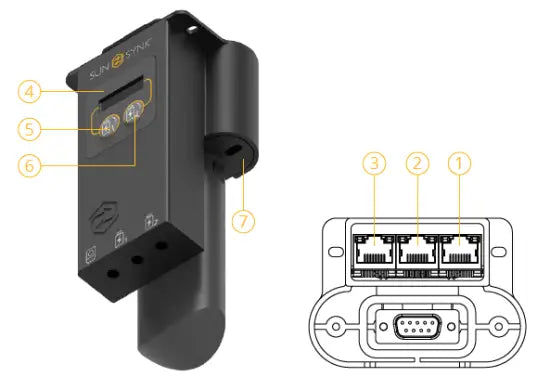

• 3x RJ45 ports: Inverter (Port 1), Battery 1 (Port 2), Battery 2 (Port 3)
• Powered directly via 12V from inverter RS232/Wi-Fi port (plug-and-play)
• IP65 weatherproof rating + wide operating temperature: -40°C to +85°C
• Supports 500Kbps & 250Kbps CAN (note: cannot mix baud rates)
• Compatible with Sunsynk Connect data logger
• Compact, durable design with secure mounting

Pros

• Ultimate flexibility — Mix battery brands/models without buying matched pairs (saves thousands)
• Easy LCD configuration — Scroll & select protocols in minutes
• Reliable aggregation of voltage, current, SOC, temperature, and alarms
• Robust for South African conditions (heat, dust, outdoor installs)
• Cost-effective upgrade for existing Sunsynk systems
• Plug-and-play with minimal wiring

Cons

• Cannot mix different baud rate protocols (e.g., 500Kbps + 250Kbps)
• Not compatible with Sunsynk Acure Single-Phase (C1/C2), Acure Three-Phase (C3), or Contour inverters
• Communication cables not included (use standard RJ45 CAN cables)
• Requires careful double-checking of port assignments (BMS1 → BAT1 port, etc.)
• Limited to exactly two batteries

Technical Specifications

• Model: SSKLIKACC01
• Power Supply: DC 12V / 10mA
• Operation Power: 100mW Max
• Communication: CAN (500K/250K bps)
• IP Rating: IP65
• Operating Temp: -40°C to +85°C
• Frequency: 64MHz

Supported Protocols (partial list): Sunsynk A/B, Pylon Tech, GoodWe, Ginlong, Growatt, Victron, Sofar, SMA, LXP, Jikong, Knigor.

Simple Installation

1. Plug Klik into inverter RS232/Wi-Fi port
2. Connect Battery 1 & 2 CAN cables to respective ports
3. Power on inverter → Select protocols via LCD buttons (auto-save after 5s)

Full user manual and wiring diagrams included.

Ideal for loadshedding resilience, off-grid expansion, or future-proofing your system. Trusted Sunsynk quality with local South African presence.

Add the Sunsynk Klik to your cart today and build the perfect mixed-battery solar setup! Shop more clean energy solutions at www.olirosssolar.co.za

(Recommended for professional installation by a certified solar technician.)
