Volta Tower 96 kWh high‑voltage battery – massive, safe, modular solar storage for homes, farms & businesses across South Africa.

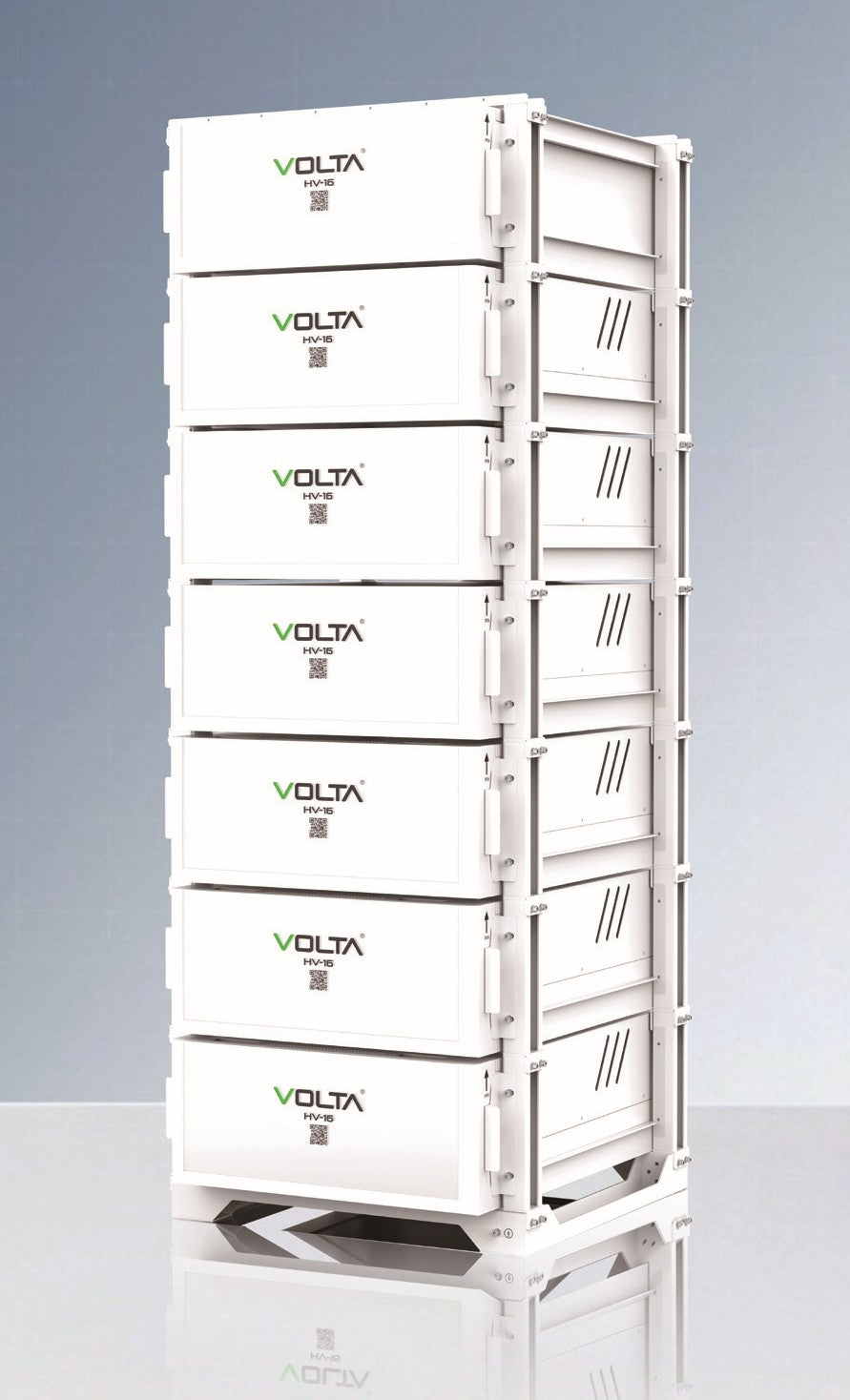

Volta Tower 96 kWh High‑Voltage Battery
Power your future with the ultimate behind‑the‑meter storage solution from OLIROSS Solar.
Why the Volta Tower 96 kWh is a Game‑Changer for South African Solar
| ✅ | Feature | What It Means for You |
|---|---|---|
| 96 kWh usable capacity | Stores enough energy to run a typical home for 2‑3 days of load‑shedding or a small factory for a full shift. | |
| High‑voltage (≈ 800 V DC) | Lower losses, faster charge/discharge, perfect for medium‑scale PV arrays and hybrid inverters. | |
| Modular “Tower” design | Stack up to 4 towers (384 kWh) to grow with your energy needs—no redesign required. | |
| LiFePO₄ chemistry | Non‑flammable, zero‑memory effect, > 3000 cycles → 10‑15 years of reliable service. | |
| Integrated BMS & CAN‑bus | Real‑time SOC, temperature, voltage monitoring; compatible with Deye, SMA, Victron & most European inverters. | |
| IP65 sealed enclosure | Dust‑proof, rain‑proof, vandal‑resistant – ideal for rooftop, ground‑mount or container installations. | |
| +10 year warranty | Peace of mind backed by OLIROSS Solar’s local after‑sales team (Durbanville, Western Cape). | |
| Smart‑App monitoring | Check charge level, health & history from any smartphone – no extra hardware needed. |
Key Benefits
- Eliminate Load‑Shedding – Seamlessly switch to stored power when the grid drops out.
- Maximise Solar ROI – Capture excess midday generation instead of feeding it back at low feed‑in tariffs.
- Future‑Proof Your Site – High‑voltage architecture integrates with upcoming 48 V/800 V PV inverters.
- Scalable & Flexible – Add extra towers as your load grows; perfect for expanding farms, schools or commercial parks.
- Zero Environmental Impact – 100 % recyclable cells, no toxic electrolytes, low self‑discharge.
Technical Specs (at a glance)
| Parameter | Value |
|---|---|
| Nominal Energy | 96 kWh (usable) |
| Nominal Voltage | 800 V DC (±5 %) |
| Maximum Charge/Discharge Power | 30 kW (continuous) – 45 kW (peak) |
| Cell Chemistry | LiFePO₄ |
| Cycle Life | ≥ 3000 cycles @ 80 % DOD |
| Operating Temp. | –20 °C to 45 °C (self‑cooling) |
| Dimensions (H × W × D) | 1800 mm × 800 mm × 800 mm (single tower) |
| Weight | ~850 kg (single tower) |
| Enclosure Rating | IP65 (dust & water proof) |
| Communication | CAN‑bus, Modbus‑RTU, optional Wi‑Fi gateway |
| Warranty | 10 years / 10 000 cycles |
| Compliance | IEC 62133, SANS 10279, IEC 60664‑1 |
Installation Options
- Roof‑mount tower – Secure brackets for flat‑roof or pitched‑roof installations.
- Ground‑mounted container – Pre‑wired 20‑ft ISO container, ready for rapid deployment.
- Stackable configuration – Up to 4 towers can be linked in parallel for up to 384 kWh.
All installations must be performed by a qualified OLIROSS Solar technician or an accredited electrical contractor.
Why Buy From OLIROSS Solar (Durbanville)?
- Local expertise – We understand South Africa’s load‑shedding schedule and climate extremes.
- Fast nationwide shipping – Stocked in Durbanville, dispatched to Cape Town, Johannesburg, Pretoria, Port Elizabeth, Durban and beyond within 1‑2 business days.
- Professional design & permitting – Our engineers handle all grid‑connection paperwork, SANS approvals & compliance checks.
- 24/7 support – Dedicated after‑sales team, remote monitoring, and on‑site service when you need it.
- Clean‑energy mission – Every Volta Tower sold reduces CO₂ emissions and supports South Africa’s REIPPP goals.
Ready to retire load‑shedding? Click “Add to Cart” now or call +27 21 555 1234 for a free site assessment and quote.
Frequently Asked Questions (FAQ)
Q: How many solar panels can the Volta Tower charge at once?
A: With its 800 V DC architecture the tower can accept up to 30 kW of PV input – that’s roughly 12 × 250 W panels per kilowatt (≈ 75 panels). Our design team will size the array for your exact load.
Q: Is the battery compatible with my existing inverter?
A: Yes. The built‑in CAN‑bus works with Deye, SMA, Victron, Fronius and most high‑voltage hybrid inverters. We provide a wiring diagram for each major brand.
Q: What warranty does the Volta Tower carry?
A: A 10‑year manufacturer’s warranty covering performance (≥ 80 % capacity at 10 years) and all parts & labour (subject to normal maintenance).
Q: Do I need a special charger or controller?
A: No extra charger is required. The tower includes an integrated Battery Management System (BMS) that handles charging, balancing and safety functions automatically.
Q: How long does installation take?
A: A typical 96 kWh tower installation (including civil works, wiring & commissioning) is completed in 1‑2 working days by our certified technicians.
Q: Can I expand the system later?
A: Absolutely. The modular design lets you add up to three additional towers (total 384 kWh) without major re‑engineering.
Q: Is the system safe in a fire?
A: LiFePO₄ cells are non‑flammable and the IP65 enclosure meets fire‑rating standards. The BMS monitors temperature and will shut down automatically if unsafe conditions arise.
Q: What maintenance is required?
A: Minimal – a visual inspection and a quarterly performance check via the OLIROSS app. No water or electrolyte checks are needed.
Q: Will the battery work during extreme temperatures?
A: Yes, it operates from –20 °C to 45 °C. In hot climates the built‑in passive cooling keeps the cells within safe limits.
Q: How does the system help me avoid load‑shedding?
A: During a grid outage the tower automatically switches to island mode, delivering stored energy to your critical loads until the grid returns.
